AIMEXR
This high-end model is equipped with the latest functions to provide flexibility and adaptability to a variety of production needs.
This flexibility is demonstrated with features such as NPI support for rapid launch of new production and immediate response to changes in production needs through batch changeover. The AIMEXR inherits the versatility that is a staple of the AIMEX series, such as high productivity, high quality, and mass production. It enhances the exiting platform through new sensing functions.
Features
Expanded Capacity

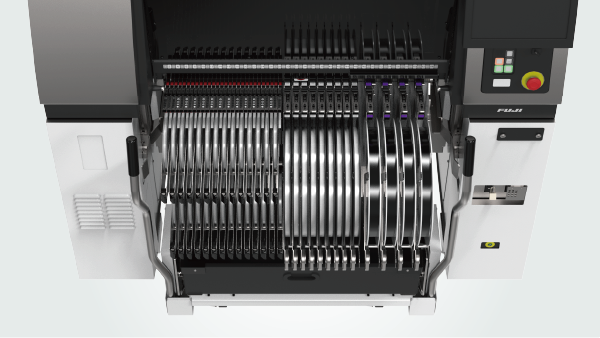

Despite its compact size, the AIMEXR offers extensive capacity, enabling flexible and diverse production operations.
Placement Heads
The AIMEXR utilizes the same advanced heads as the NXTR, offering exceptional versatility. These heads expand the range of compatible parts, enabling seamless line balancing and ensuring consistent production rates, even when transitioning to a new set of parts for the next production run.
Greater Support for Large Panels

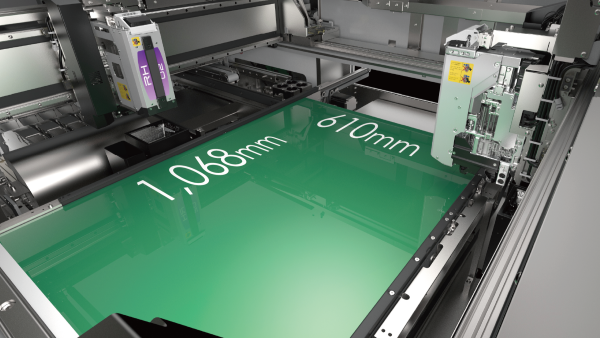

The AIMEXR can handle panels up to a maximum size of 1,068 x 610 mm, making it suitable for a wide range of applications. These include LED placement, automotive panels, and large panels used in communication infrastructure.
Minimize Changeover
The machine features large-capacity part supply units capable of holding up to 130 different part types. This design enables shared setups, reducing the frequency of changeovers and easing operator workloads.
Full Production
The machine allows immediate program adjustments to address sudden production changes or vision processing errors during operation. These on-machine editing capabilities help minimize downtime and reduce the lead time required to resume or ramp up production.
High Quality Placement
The system uses real-time sensing technology to monitor the condition of electronic parts and panels during operation. This data is instantly analyzed and applied to ensure precise placement, maintaining consistent and reliable quality.
High Accuracy Placement
Placements are made with a high accuracy of ±25 µm, regardless of the head type or part being placed. It also carefully regulates the push-in pressure during placement to ensure optimal precision and reliability.
Panel Warpage Adjustment
Reliable placement is ensured by detecting and compensating for panel warpage and variations in individual parts using advanced features. This maintains productivity, even with large panels that are prone to significant warping (up to 7 mm).
Defect Detection (IPS System)
The IPS system can perform a variety of checks, including part pickup position, parts remaining on nozzles, and upside-down checks for minimold parts. It helps prevent placement defects caused by packaging issues, nozzle problems, or part irregularities.
Preventing Defects via Part Properties
Placement defects caused by operational errors or defective parts are prevented by performing LCR checks on the electrical properties of chip parts and coplanarity checks on the leads and bumps of IC parts. (Option)
Fastest in the Series

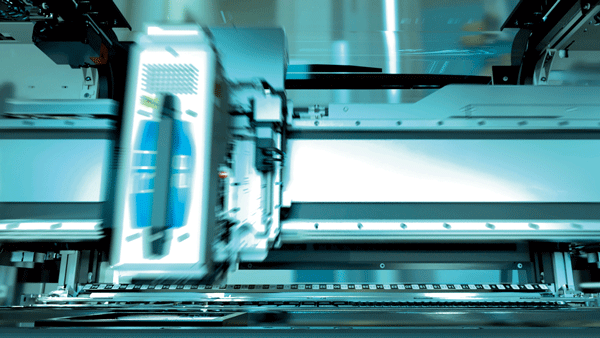

It achieves the fastest placement speed in the series’ history by utilizing advanced XY robots with linear motors, leading to significant improvements in area productivity.
Stable Operation & Non-Stop Production
The system supports continuous production with quick recovery, helping to minimize downtime and improve overall operation rates.
Maintenance
Nozzles, feeders, and heads can all be maintained offline. Automation units ensure reliable maintenance without the need for specialized skills, and connecting these units to Nexim enhances overall maintenance management.
SDGs
Power consumption has been reduced by 10%* through the use of highly efficient motors. Additionally, we are reviewing our coating processes and making efforts to
further reduce environmental impact.
* Measured under conditions at Fuji.
