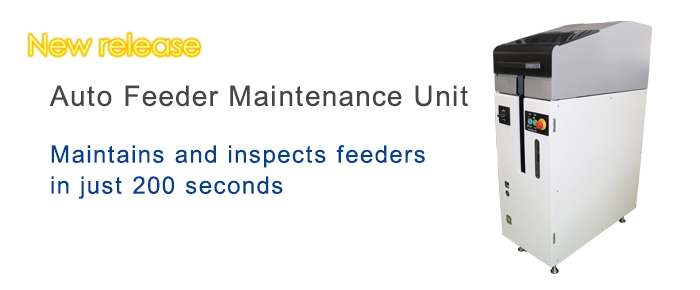

AUTO FEEDER MAINTENANCE
Features
Maintains and inspects feeders in just 200 seconds

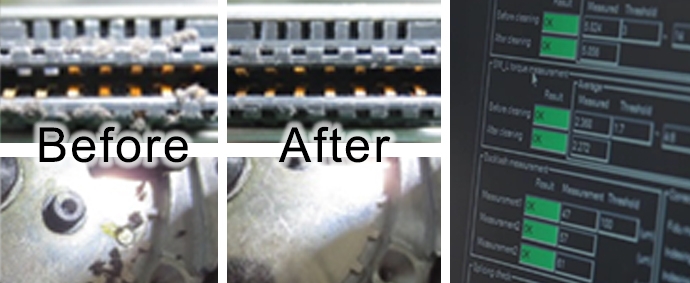

Removes old grease and other foreign matter from gears and then applies new grease, and also measures the tape indexing accuracy automatically after cleaning and lubricating are finished.
Automatically reads the ID of feeders when they are set (option) and registers the maintenance history in the system.
Specifications
| Item | |
| Supported feeder | W08, W08b / c, W08f |
| Capacity for concurrent maintenance | 1 feeder |
| Cycle time | 200 sec (including vision processing time) |
| Size, weight | W360 x D820 x H1190 mm, 120 kg |
| Power supply | AC 200 V to 240 V |
| Air supply | 0.5 Mpa |
*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
