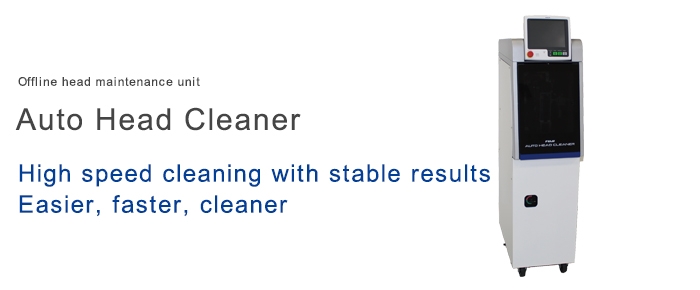

AUTO HEAD CLEANER
Features
Shortens maintenance time and improves quality
By automating this maintenance work, the maintenance work time is cut to a third of the time versus doing it manually and quality is improved with the stable and good maintenance which does not have the variance and mistakes caused by manually performing this work.
You also confirm the cleaning results with the automatic inspection function after cleaning.
Specifications
| Item | |
| Air mode cleaning time | 8 minutes *1 |
| Oil mode cleaning time | 21 minutes *1 |
| Oil type | Fluorinated grease |
| Supported heads | V12, H12HS(Q), H12S(Q), H12, H08(Q), H08M(Q), H04S, H04 |
| Weight | 110 kg |
| Size | 350 x 660 x 1410 mm |
| Power | 200 V (3 phase) |
| Air | 0.4 MPa (dry air) |
*1 When cleaning 12 nozzle head
*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
