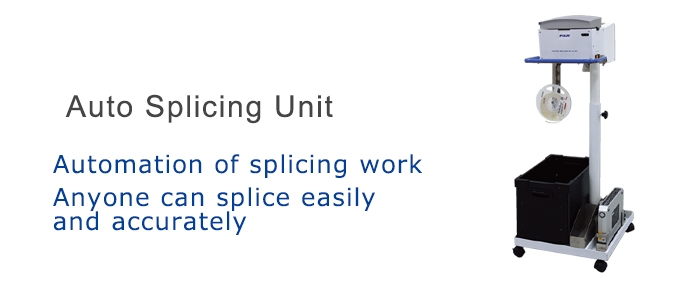

AUTO SPLICING UNIT
Features
Shortens splicing time and improves quality
By automating the splicing work, work time is drastically cut versus doing it manually and quality is improved with stable and good splicing which does not have the variance and mistakes caused by manual splicing.
With good stable splicing quality, there are no short stops caused by issues in connecting tapes and this means that operation rates are improved.
Specifications
| Item | |
| Supported tape types | 8 mm paper tape |
| Part size | 0402 (01005") to 3216 (1206") (3.2 x 2.5 mm) |
| Splicing tape | Fuji splicing tape (reel type, 1200 pieces per reel) |
| Tape connection position accuracy | ±0.2 mm |
| Cycle time | 5.3 sec |
| Unit size | 450 x 450 x H1002 mm (±100 mm) |
| Power supply | Rechargeable battery (Input voltage: AC 100 to 240 V) |
*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
