SMARTFAB
Power Module Assembly
Features

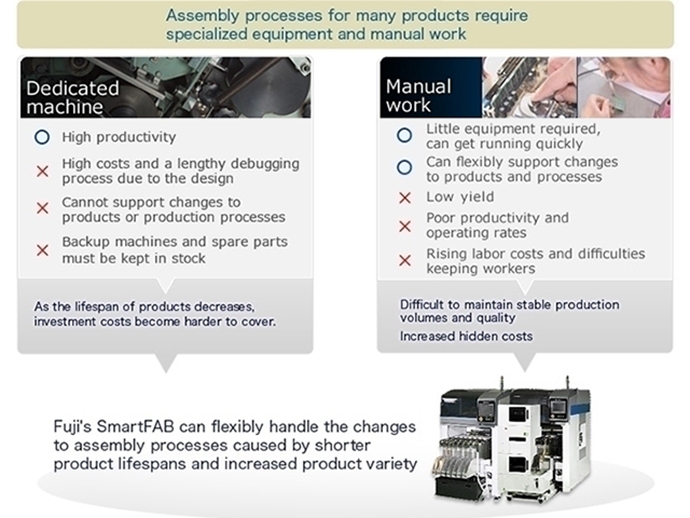

Current problems in assembly processes

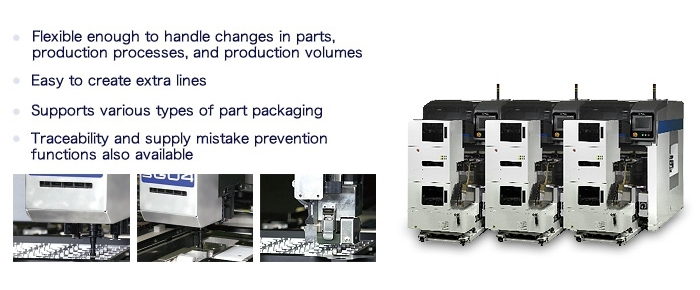

Power Module Assembly Example
Efficient assembly using 2 heads
Carrier head for high-speed picking and placing and processing head for flux application
Highly accurate assembly
Vision process work and parts and perform position correction using 2 cameras
Wide work area
Modular and discrete assembly processes on the same platform
Specifications
| Carrier head | sH02 (2 tools) |
|---|---|
| Processing head | sJD head (dispenser) |
| Part supply |
Tray unit Glue check unit (for dispenser) |
| PCB conveyance | Single conveyor |
| Tool changer | Equipped |
*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
